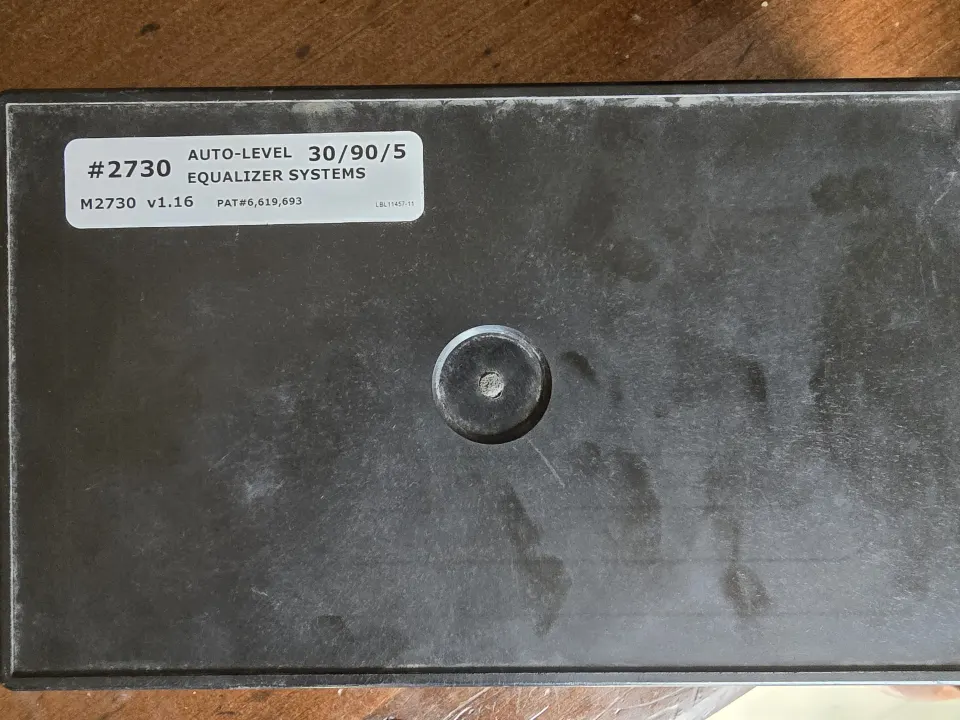

If your RV’s auto-leveling system suddenly stops working—especially if some hydraulic jacks won’t drop—the cause may not be mechanical. In many cases around Buhl, Twin Falls, and the Magic Valley, the real issue is an electrical fault on the controller board.
Common Misconceptions About Leveling Failures
When leveling systems stall, owners often suspect:
- A broken hydraulic jack that needs replacement
- Low or contaminated hydraulic fluid
- A simple controller reset will fix the problem
However, these symptoms can also point to a failed electronic component inside the control unit.
How a Faulty Zener Diode or Relay Disrupts Leveling
The controller board manages voltage and timing for each jack. If a Zener diode fails, it can disrupt voltage regulation, preventing relays from activating the jacks. This means one or more jacks may not respond during auto-leveling—even though the rest of the system appears fine.
Diagnostic Steps for RV Owners and Technicians
- Confirm Symptoms: Test each jack individually to identify which ones are unresponsive.
- Visual Inspection: Open the controller enclosure (with power disconnected) and look for burnt components, corrosion, or loose solder joints.
- Zener Diode Testing: Use a multimeter in diode mode to check if the suspected diode conducts as expected.
- Relay Testing: Verify that relay coils receive proper voltage and contacts close when activated.
The Board-Level Repair Process
- Select replacement diodes and relays matching original specifications—using quality electronics parts kits.
- Desolder damaged components with appropriate tools (hot-air rework station or soldering iron).
- Solder new parts onto the board, ensuring solid connections and correct orientation.
- Reassemble the enclosure and apply waterproofing sealant to guard against future moisture damage.
- Test all jacks through several auto-level cycles to confirm full restoration of function.
Preventive Maintenance Tips for Magic Valley RV Owners
- Keep control enclosures dry using silicone sealant or waterproof gaskets—especially after wet weather or washing your RV.
- Inspect boards annually for corrosion or moisture intrusion, particularly after trips in humid conditions.
- Consider replacing power supply filter capacitors every 5–7 years to minimize risk of voltage spikes damaging sensitive components.
- If you notice slow or inconsistent jack movement, schedule a professional diagnostic before further travel.
When Professional Help Is Needed
Troubleshooting and repairing circuit boards requires precision soldering skills and knowledge of safe handling practices. If you’re unsure about any step—or if your RV’s warranty requires professional service—it’s best to contact a qualified repair shop serving Buhl, Twin Falls, Filer, Kimberly, Jerome, and greater Magic Valley. TechHand Pro Solutions offers diagnostic services (minimum fee applies), electronics parts kits sourcing, and board-level repairs with proper waivers as needed for complex jobs.
Main Takeaways
- A single failed diode or relay can stop one or more jacks from operating during auto-leveling cycles.
- Board-level repairs often restore full function without replacing expensive control modules.
- Waterproofing and regular inspection help prevent future electrical failures in Idaho’s changing climate.
