Reviving a Bosch Rexroth Actuator in Twin Falls: Board-Level Repair

The issue

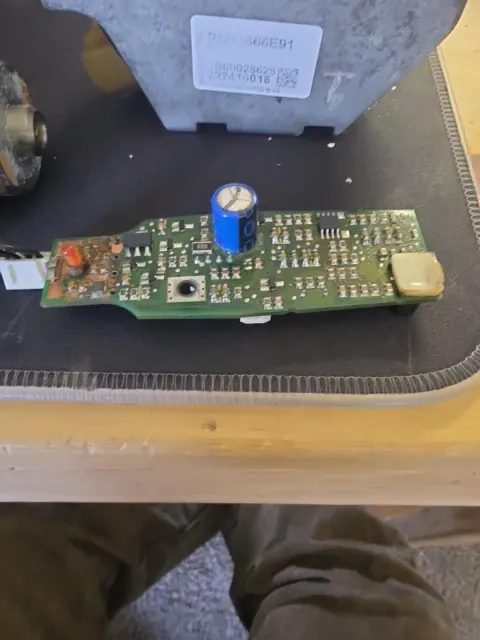

The actuator’s controller board had suffered significant liquid and heat damage, evident from visible corrosion along the left edge and a non‑functional LED. This damage disrupted power distribution and signal paths, leading to erratic actuator behavior. The client’s equipment was unable to perform its intended tasks, impacting production schedules.

What they reported vs what we found

How we fixed it

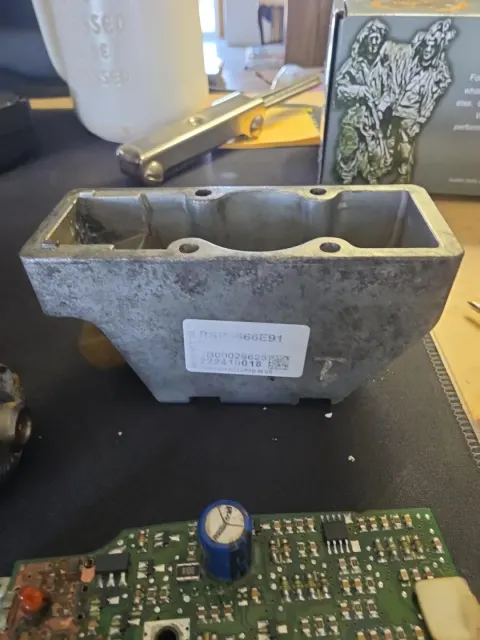

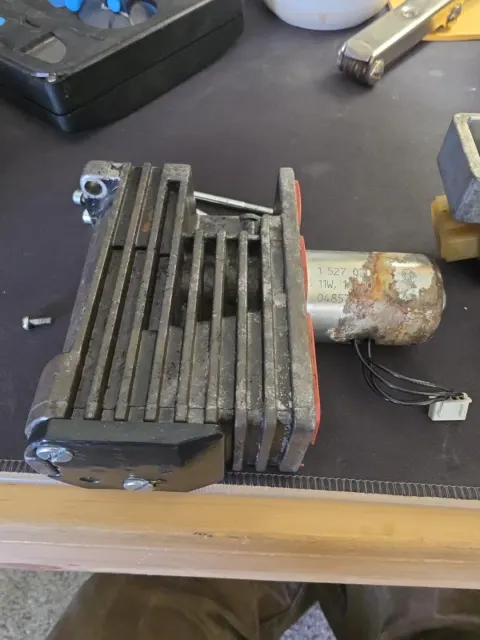

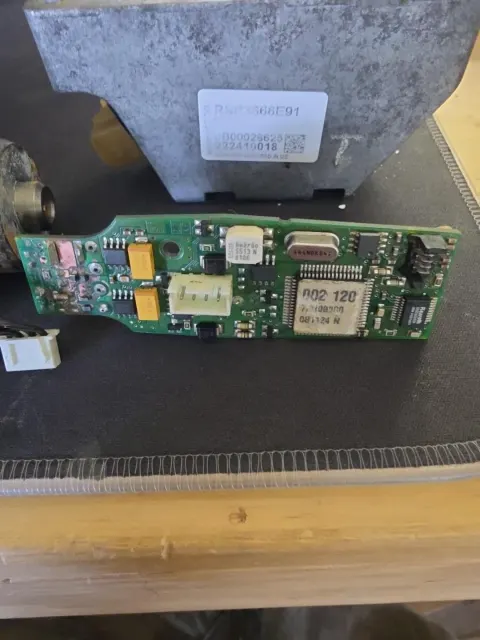

We began by verifying the asset details and documenting the board’s condition. Using a microscope and hot‑air station, we identified the exact components that had failed. Replacement parts—including a choke, electrolytic capacitors, and a new LED—were ordered and soldered onto the board. After re‑assembly, we performed comprehensive functional tests, checking power, signal integrity, and thermal performance. The board passed all tests and was re‑installed in the actuator housing.

Process

1. Intake / discovery

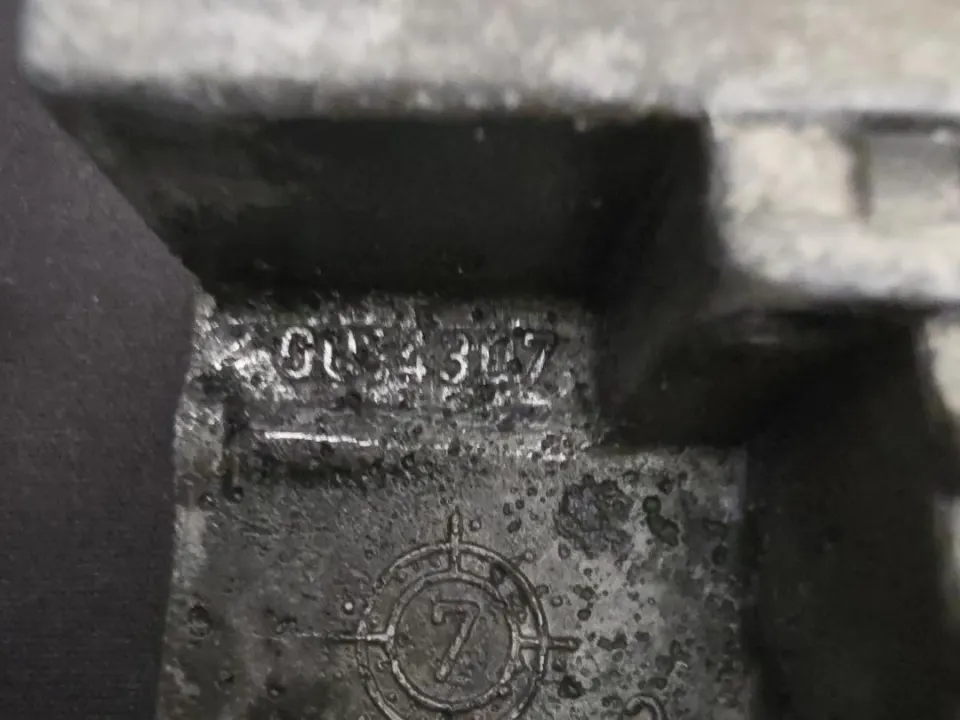

   We collected the actuator’s model, serial number, and visual evidence of damage. The client in Buhl confirmed the board‑level issue and approved the diagnostic fee.

2. Diagnosis

   Using a microscope and hot‑air station, we inspected the board for corrosion, heat marks, and component failure. Electrical tests pinpointed the damaged traces and failed LED.

3. Repair / remediation

   We ordered the required parts, re‑soldered the choke, electrolytic capacitors, and LED, and cleaned the board of corrosion. The board was then re‑assembled in the actuator housing.

4. Verification

   Functional testing confirmed proper power delivery, signal integrity, and thermal stability. The client verified the restored operation on site before pickup.

5. Documentation & handover

   We documented the repair steps, provided a maintenance checklist, and handed over the actuator with a brief training session for the client’s operators.

Result

The repaired actuator returned to full operation, restoring the client’s production line in Twin Falls. The solution extended the life of the equipment, avoided the cost of a full replacement, and demonstrated TechHand’s expertise in board‑level diagnostics and repairs.

Takeaways

• Regular inspection of actuator electronics can catch early corrosion before it causes failure.
• Proper sealing and environmental controls prevent liquid and heat ingress that damage control boards.
• Professional board‑level repair can extend equipment life and save significant replacement costs.
• Timely repairs reduce downtime and maintain production schedules in the Magic Valley region.
• A detailed maintenance plan helps prevent future failures and extends the lifespan of critical machinery.
